Aluminum coil for ACP (Aluminum Composite Panels)

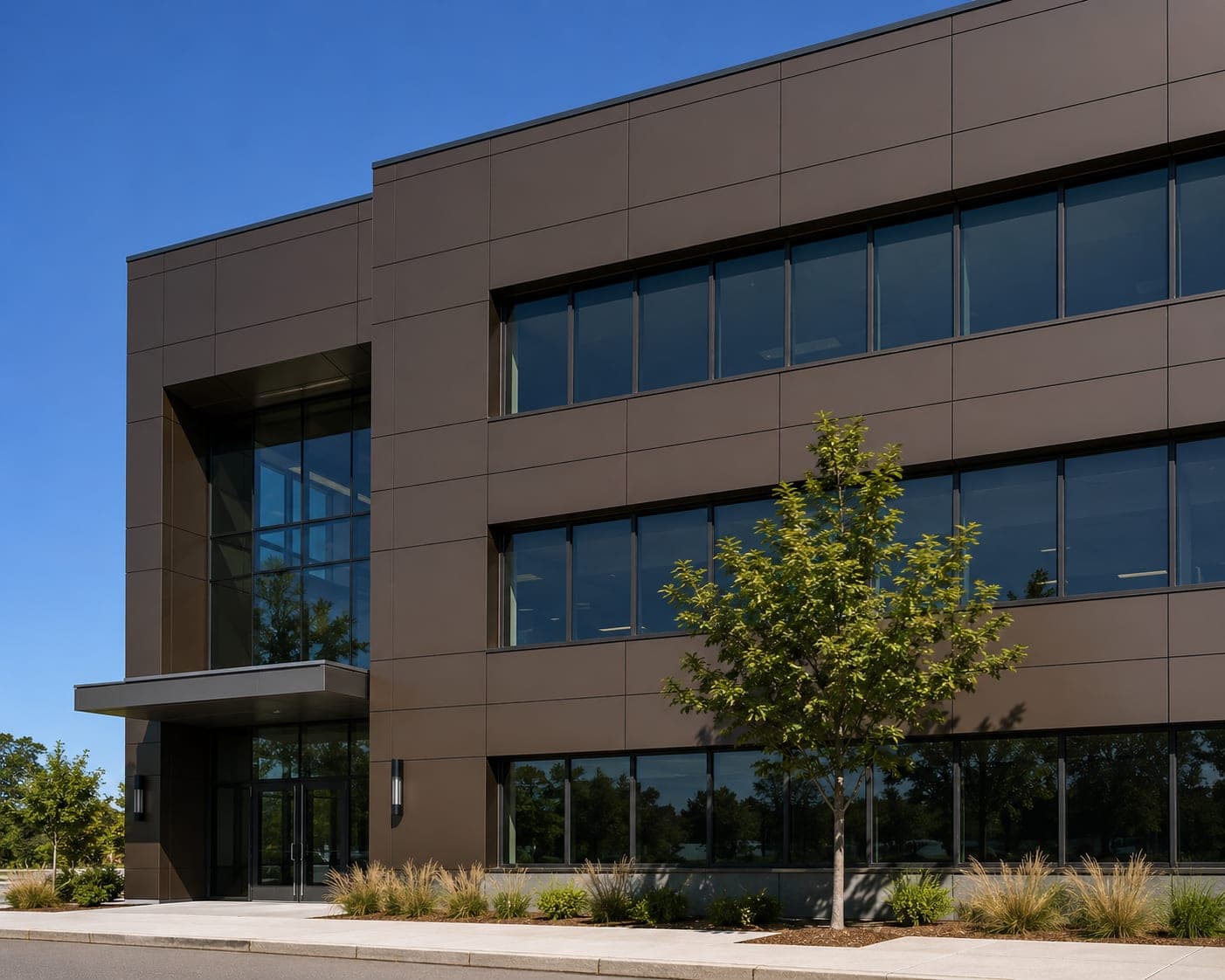

ACP (Aluminum Composite Panels) uses flat facade skins. Architectural facades demand maximum long-term color and gloss retention.
Recommended starting specification
- Coil form
- Flat facade skins
- Recommended coating
- PVDF
Guidance, not a fixed datasheet: confirm per order.
Requirements
ACP skins are thin, laminated to both faces of a core, and finished to a specific gloss, so anything wrong in the coil telegraphs straight through to the finished panel.
- Roller marks, pencil lines, coil breaks, or thickness variation: invisible on a thicker standalone sheet, but show up on the laminated facade, especially under raking sunlight, and there's no fixing it after lamination without scrapping the panel.
- Flatness tolerance: has to be tighter here than on most coil applications for exactly that reason.
Color and gloss consistency matter more on ACP than almost any other coil application, because facade panels sit side by side across a large wall in full view.
- Batch-to-batch drift: a shift in gloss or color that would go unnoticed on one roofing run becomes an obvious line across dozens of adjacent panels.
- Why PVDF is specified across the board: architectural facades need the tightest achievable retention over decades, and buyers won't accept visible drift between panels installed years apart.
Flatness also affects the bond itself. A skin that isn't flat going into lamination can leave uneven adhesive contact against the core, which shows up later as bubbling or delamination once the panel takes thermal cycling on a sun-facing wall.
Two aluminum skins, one core
ACP is two thin aluminum skins laminated to either side of a polymer or mineral core, not a solid aluminum plate. That core is what a facade photo alone can't show, and it's the reason ACP behaves differently from solid aluminum sheet in weight, flatness, and how a flatness defect in the coil telegraphs through after lamination.
How it's formed
Coil is slit to width and laminated flat to both faces of the polymer or mineral core under heat and pressure, with no roll-forming of the skin itself beyond the coil-to-sheet conversion.
What comes with your order
Material certificates accompany every batch. Test reports and ASTM/EN references are available on request.
Frequently asked questions
- Why does ACP require tighter flatness than other coil applications?
- Because the skin is thin and bonded directly to a core, any waviness, roller mark, or coil break telegraphs straight through the laminate and becomes visible on the finished facade panel. There's no forming step afterward to disguise it, and once laminated, a flatness defect can't be corrected without scrapping the panel.
- Why is PVDF the only coating recommended for ACP, unlike roofing or cladding?
- Facade panels sit side by side across a large visible wall, so color and gloss consistency across production runs matters more than on a single roof or wall run. PVDF gives the best long-term color and gloss retention available, which keeps panels installed years apart looking consistent.
- What happens if the aluminum skin isn't flat before lamination?
- Uneven skin can leave uneven adhesive contact against the core during bonding, which shows up later as bubbling, bowing, or delamination once the finished panel goes through thermal cycling on an exterior wall. It's a bond-quality issue that starts as a flatness issue in the coil.
- Can ACP skin defects be repaired after lamination?
- Generally no. Once the skin is bonded to the core, a roller mark, scratch, or flatness defect that shows through the surface means replacing the panel, not touching it up. That's why flatness and surface inspection matter more before lamination than after.
- Does ACP skin thickness affect telegraphing risk?
- Yes. Thinner skins show underlying coil defects more readily than thicker ones, since there's less material to mask surface irregularities. Skin gauge is chosen for the panel's structural and handling requirements, but it also sets how forgiving lamination can be of minor coil imperfections.
